18650 Lithium Battery Capacity Tester MAh MWh Capacity Division Internal Resistance Measuring Module Type-C 18650 Battery Tester

Please note: The product has upgraded the battery pick-up location and will be shipped together with both new and old products

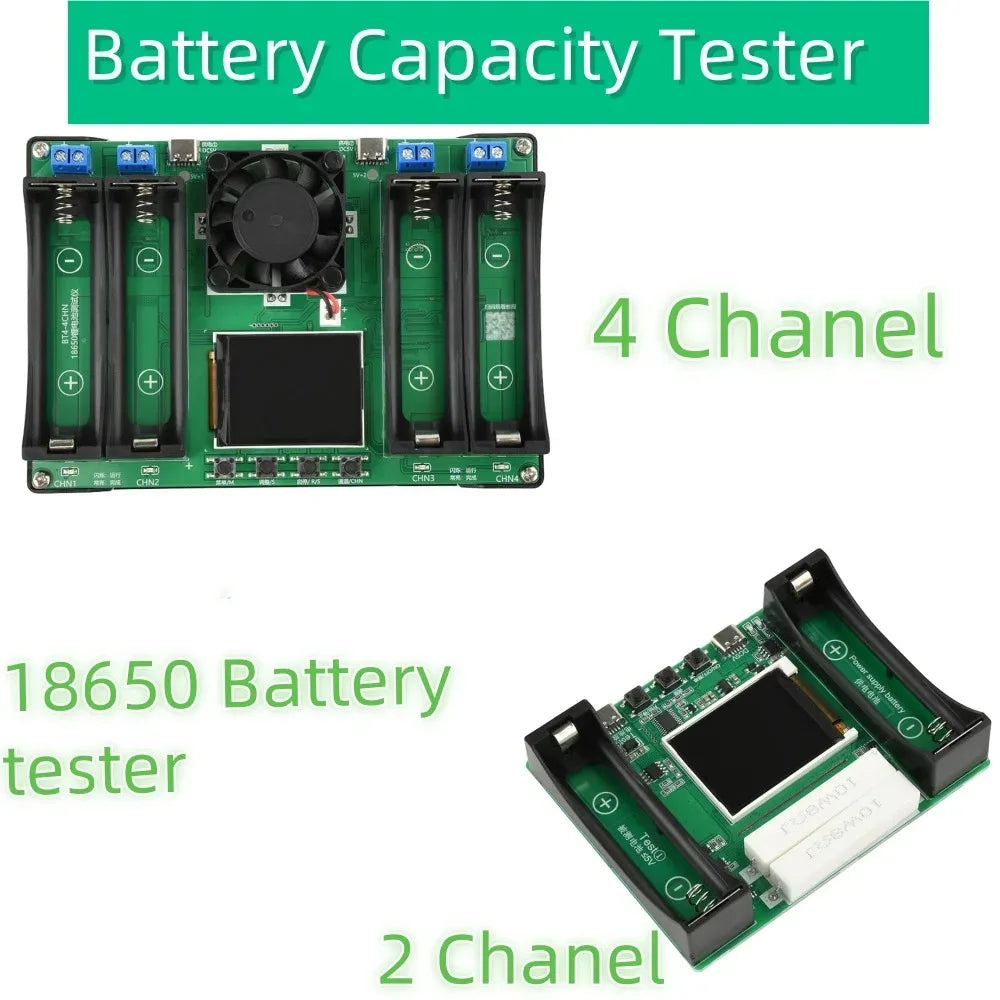

2/4 Ports 18650 Battery Capacity Type-C Tester Module MAh MWh Digital Display Lithium Battery Measurement Power Detector Tester



4 Channel Battery Tester Data link: （English）

https://www.banber.com/banber/6374be9b2ee0e200077ec156

2 Channel Battery Tester Data link: （English)

https://www.banber.com/banber/630d8a91f2d1141ad456b7d3.html



2/4 Ports 18650 Battery Capacity Type-C Tester Module MAh MWh Digital Display Lithium Battery Measurement Power Detector Tester


Note:

The product has 2Ports and 4Ports, please pay attention to select the product you need when placing an order to avoid disputes after purchase. If you have any questions, please contact our customer service first, and we will provide you with a clear answer.

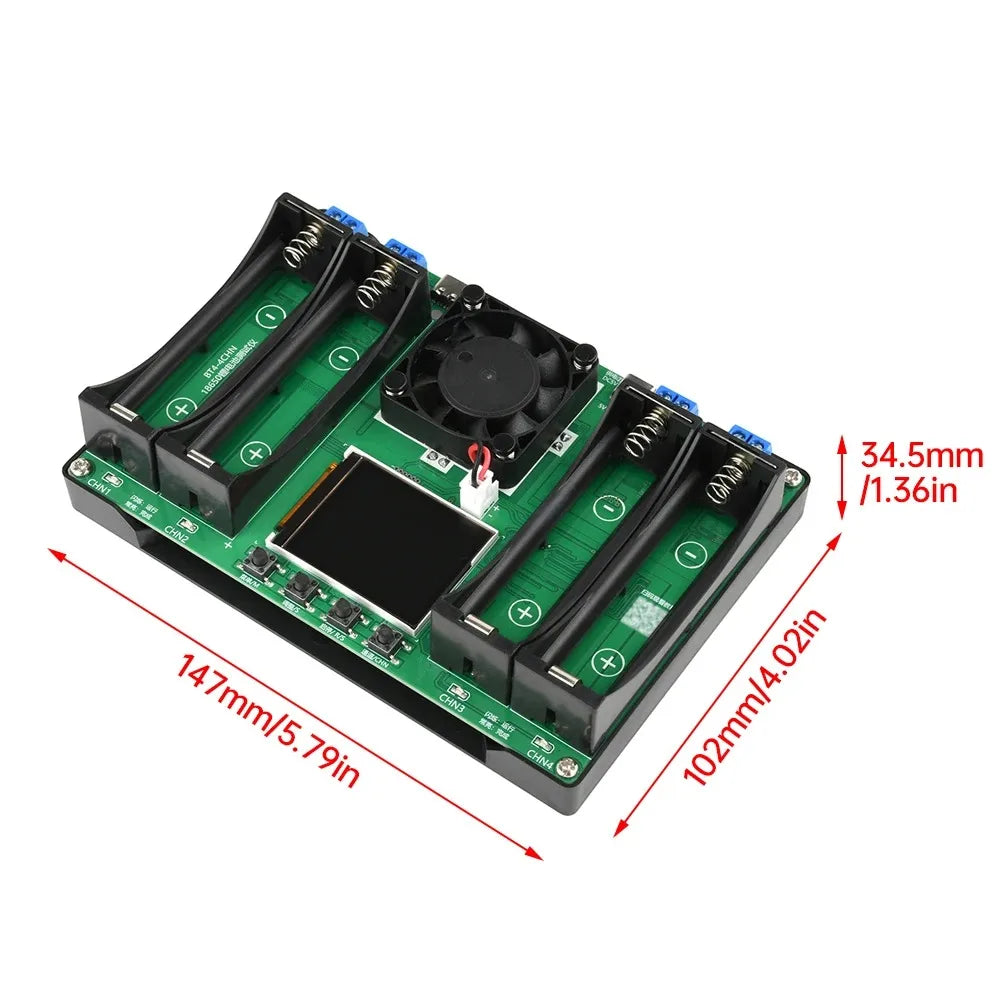

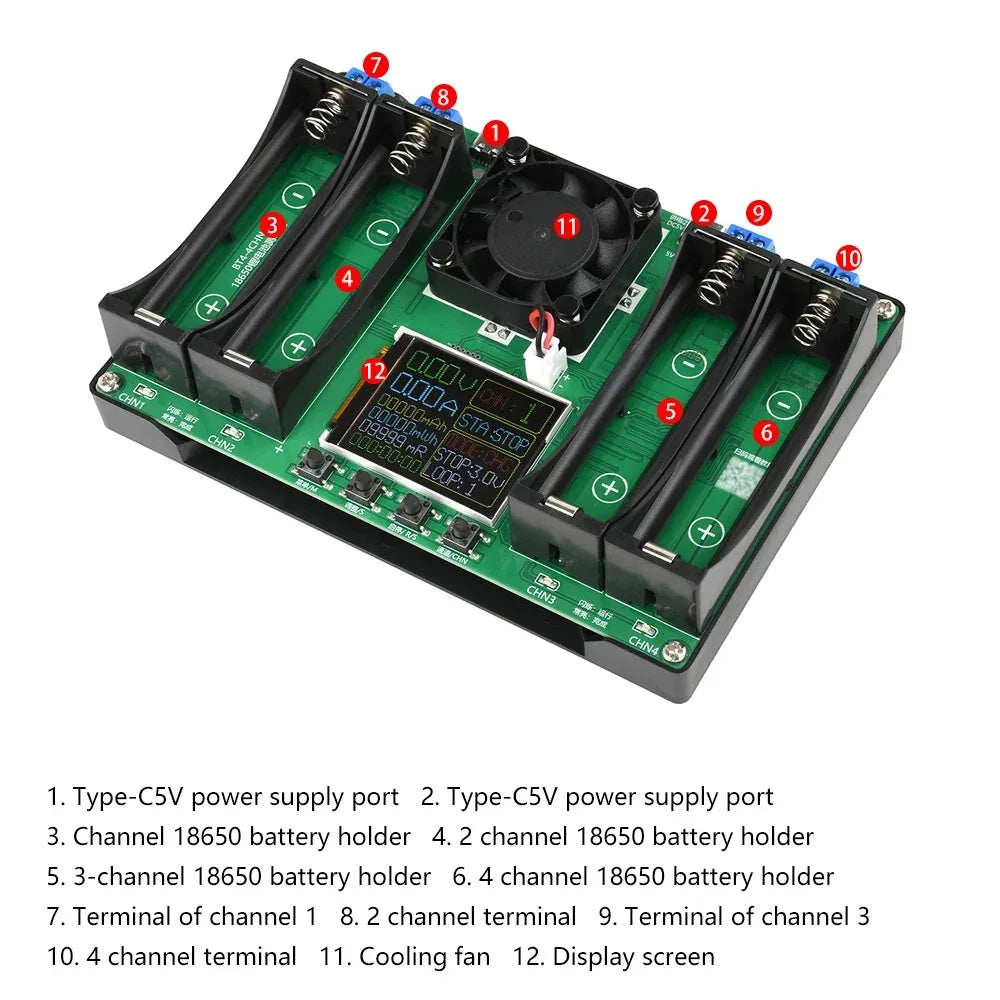

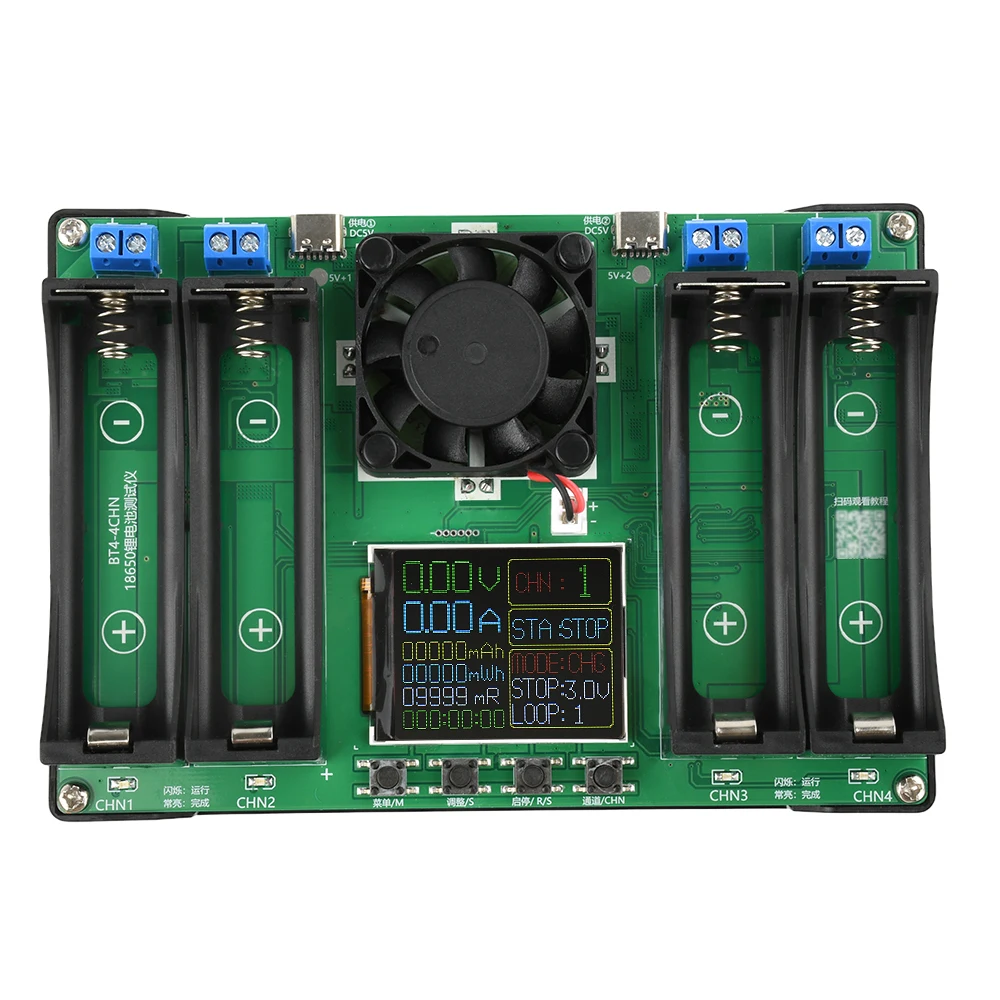

4 Channel Battery Tester Features.

Product supports four-channel capacity and internal resistance measurement
Support separate charging, separate discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent of each other, set up separately, independent operation, no interference
18650 battery holder using compact battery holder, suitable for flat battery measurement
Fan active heat dissipation Support overheating protection
Using DC two-wire method to test internal resistance
Note: does not support the charging of lithium iron phosphate batteries

4 Channel Battery Tester Parameters .

Operating voltage: DC5V
Applicable battery: Meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery are applicable
Power supply interface: two Type-C power supply interface (power supply and power cable provided)
System language: English / Chinese switchable
Test quantity: 4-channel charging and discharging measurement
Internal resistance measurement: support, using the DC two-wire method to test the internal resistance
Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)
Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: support, automatic mode ends when the battery is fully charged
Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)
Status alert: support
Heat dissipation mode: fan active heat dissipation
Overheat protection: Support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 grades adjustable
Discharge current: maximum about 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, maximum of about 1A charging, full charge voltage 4.2V
Power failure save: only save the setting parameters, not save the measurement data
Product size: 150×103×36mm
Package size: 182×112×50mm

4 Channel Battery Tester Data link: （English）

https://www.banber.com/banber/6374be9b2ee0e200077ec156

4 Channel Battery Tester Package list.

18650 battery capacity internal resistance tester X1
Pry bar X1

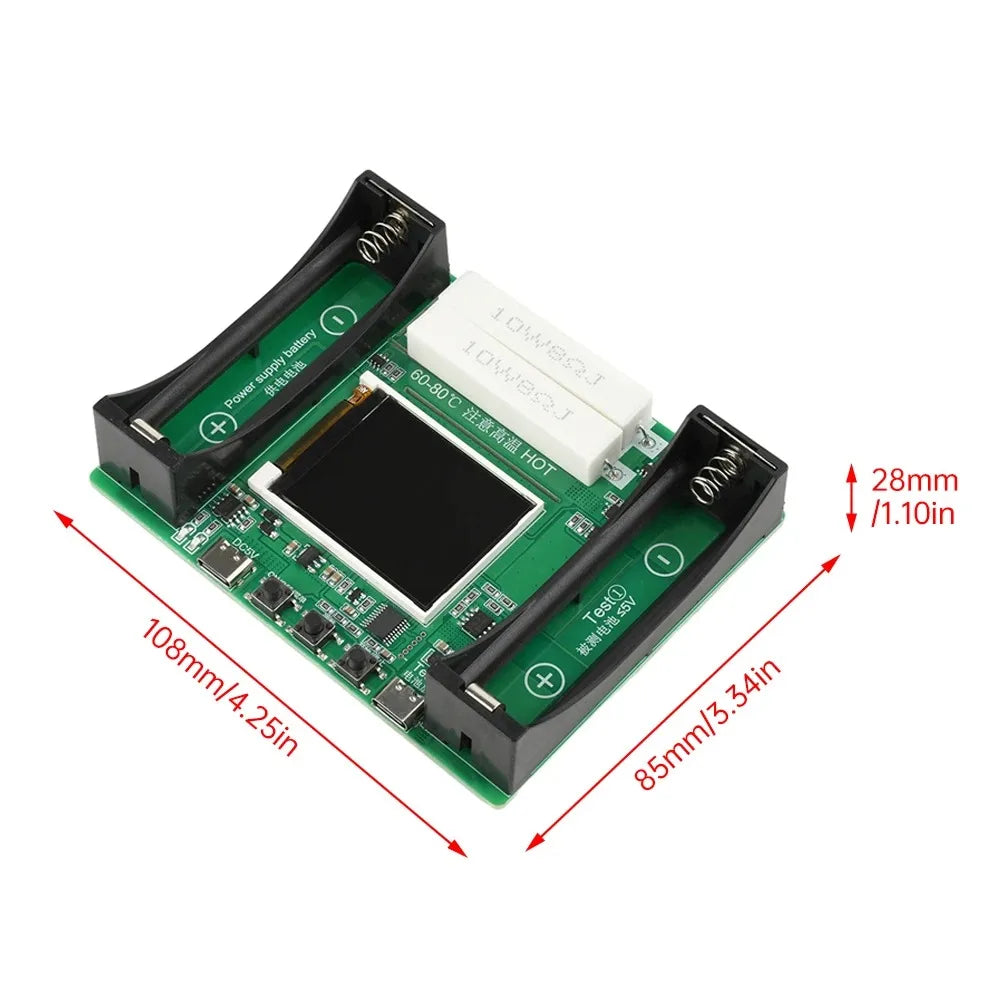

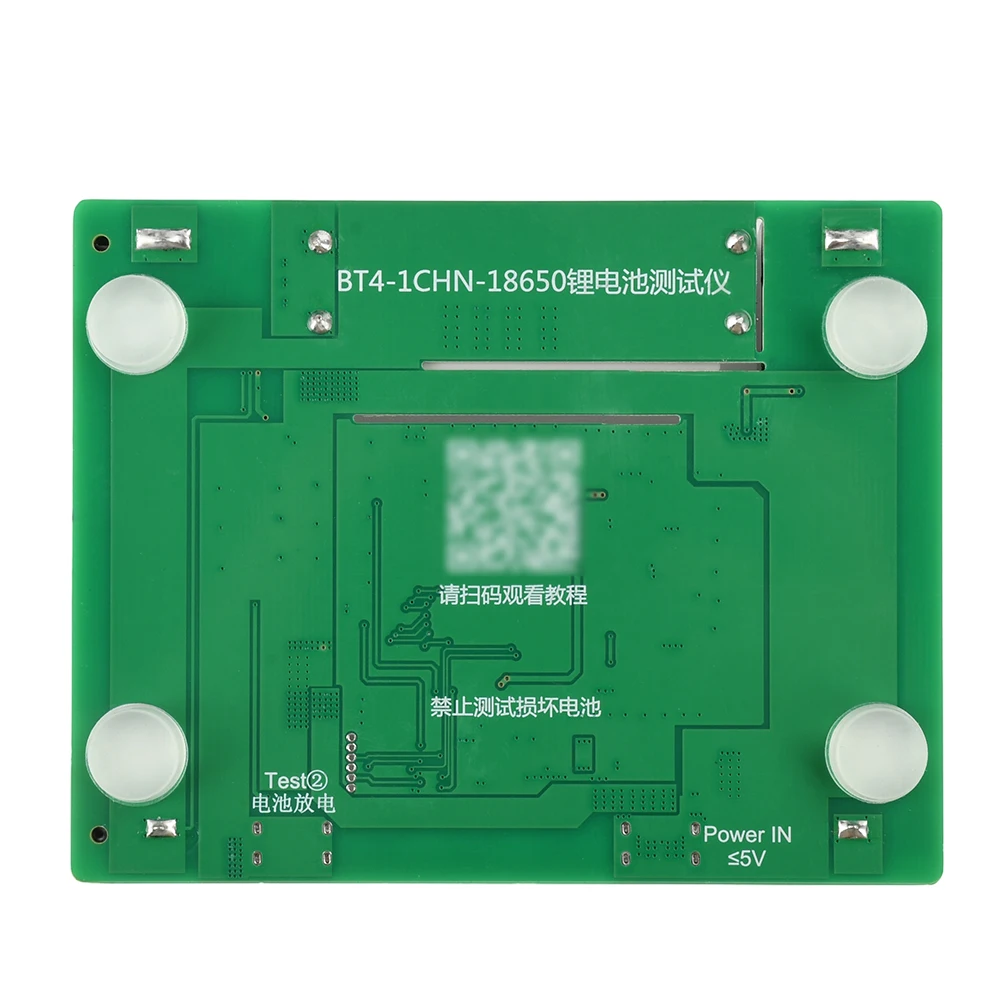

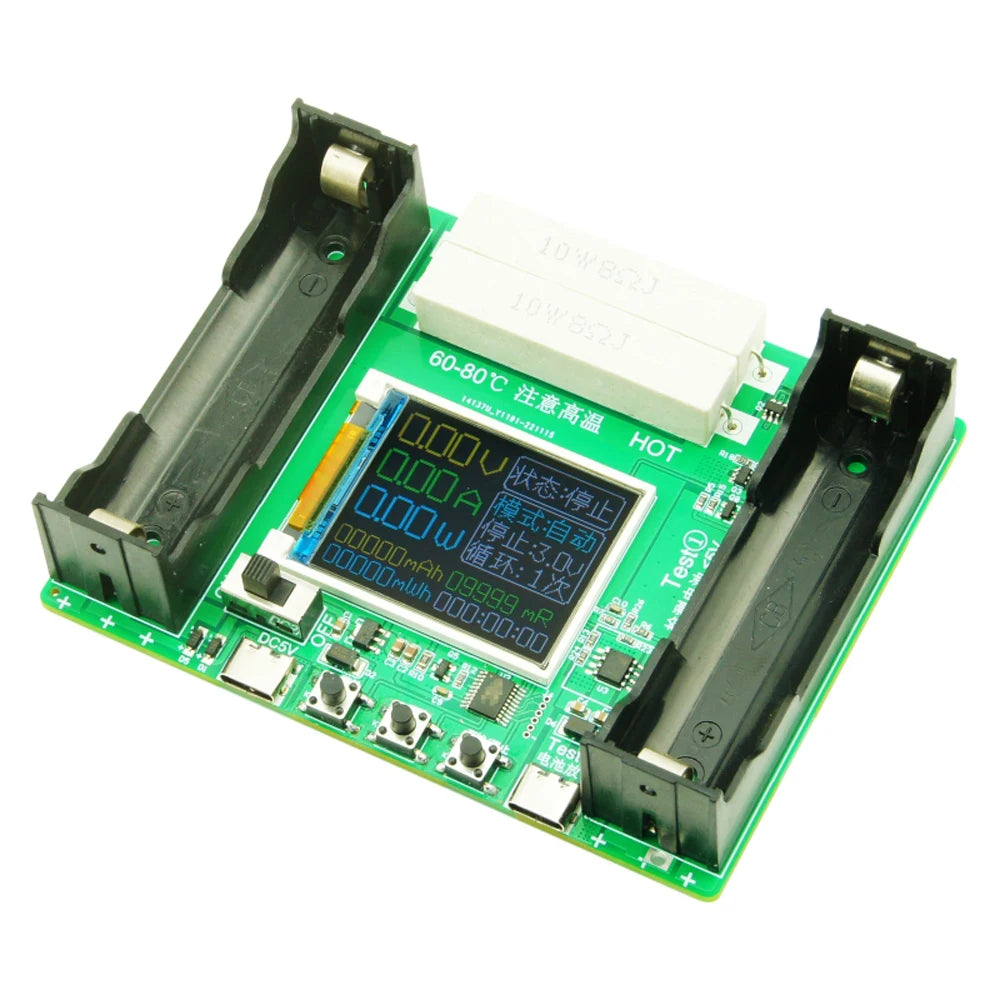

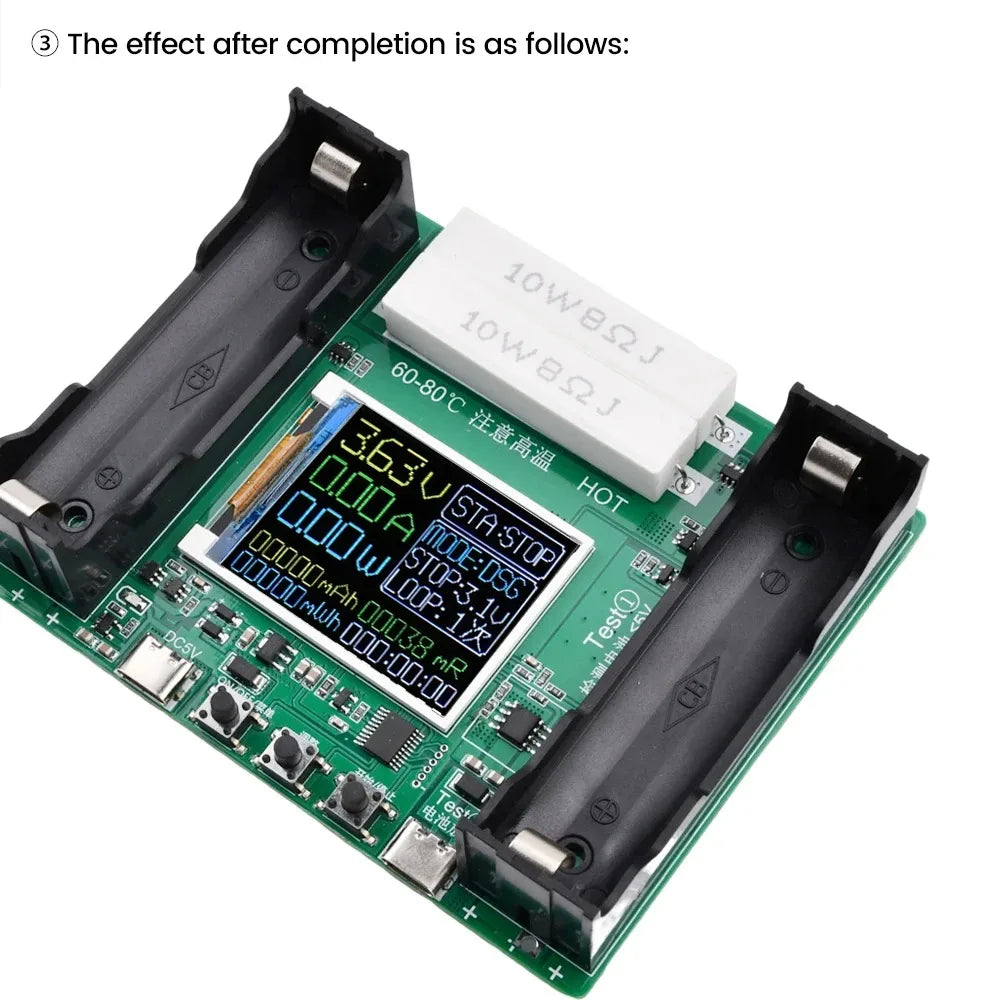

【Dual Channel Product features】

-Product supports single channel capacity and internal resistance measurement
-Supports individual charging and discharging, up to 9 charging and discharging cycles in automatic mode
-Stopping and discharging voltage adjustable in 11 steps
Two-wire DC method for internal resistance measurement, switchable between English and Chinese
-Maximum charge and discharge current approx. 1A
-Supports DIY 21700 battery holder

Information link:

https://www.banber.com/banber/63759cb5186c0a15f2d2d4c0

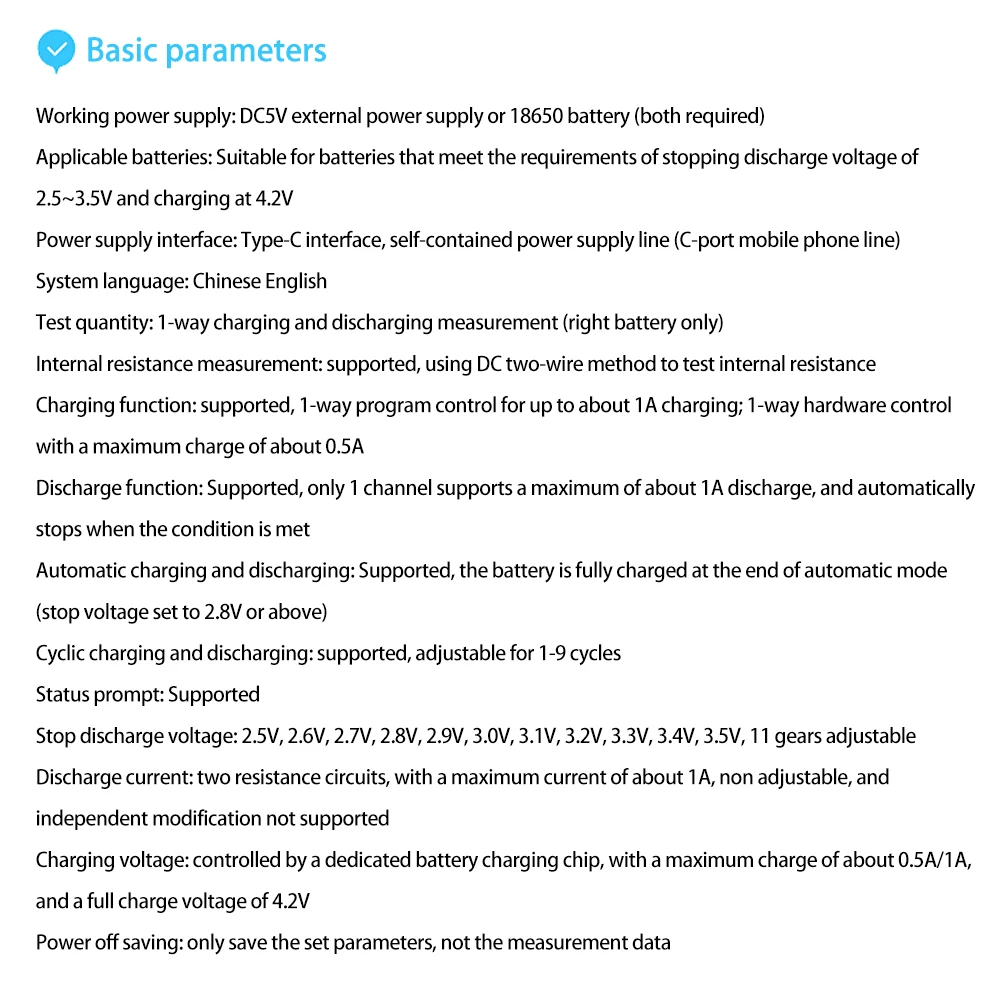

【Dual Channel Product parameters】

Working power supply: DC5V power supply or 18650 battery (need to provide their own)
Applicable battery: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery are applicable
Power supply interface: Type-C interface, power supply cable self-provided (C-port mobile phone cable)
System language: Chinese (default), English
Number of tests: 1-channel charge and discharge measurement (right-hand battery position only)
Internal resistance measurement: supported, using the DC two-wire method to test internal resistance
Charging function: supported, full automatic cut-off charging (LiFePO4 charging not supported)
Discharge function: supported, automatic stop when conditions are met, discharge current is not adjustable
Automatic charging and discharging: supported, battery is fully charged at the end of automatic mode
Cycle charging and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)
Status indication: supported
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable
Discharge current: two-way resistor, max. 1A current, not adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, max. 1A charging, full charge voltage 4.2V
Power failure save: only the setting parameters are saved, not the measurement data
Product weight: 80g (net weight) 120g (including packaging)
Product dimensions: 110 x 88 x 30mm
Package size: 153×100×42mm

【Dual Channel Package list】

18650 battery capacity internal resistance tester X1
（Battery does not included
